zct::IWatchdog Class Reference

Interface for a hardware watchdog peripheral (not the software watchdog, this does not need to be mocked). More...

#include <IWatchdog.hpp>

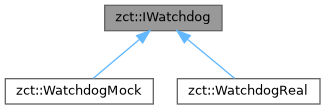

Inheritance diagram for zct::IWatchdog:

Public Types
enum class	Option : uint8_t { None = 0 , PauseInSleep = 1 , PauseHaltedByDebug = 2 }
	Watchdog configuration options. More...
enum class	ResetFlag : uint8_t { None = 0 , ResetCpuCore = 1 , ResetSoc = 2 }
	Watchdog reset behavior flags. More...
using	CallbackFn = std::function< void(int channelId, void *userData)>
	Watchdog callback function type.

Public Member Functions
	IWatchdog (const char *name)
	Constructor.
virtual	~IWatchdog ()=default
	Virtual destructor.
virtual int	installTimeout (uint32_t timeoutMs, CallbackFn callback=nullptr, void *userData=nullptr, ResetFlag flags=ResetFlag::ResetSoc)=0
	Install a watchdog timeout configuration.
virtual int	setup (Option options=Option::None)=0
	Setup the watchdog with global configuration.
virtual int	feed (int channelId)=0
	Feed (service) a watchdog channel to prevent timeout.
virtual int	disable ()=0
	Disable the watchdog instance.
const char *	getName () const
	Get the name of this watchdog instance.
virtual const struct device *	getRawDevice () const =0
	Get the raw watchdog device pointer. Only valid on real implementations, mock implementations will return nullptr.

Protected Attributes
const char *	m_name
	Name of this watchdog instance.

Detailed Description

Interface for a hardware watchdog peripheral (not the software watchdog, this does not need to be mocked).

This class provides a C++ abstraction layer over Zephyr's watchdog API. It follows the same patterns as other ZephyrCppToolkit peripheral interfaces.

Member Typedef Documentation

CallbackFn

using zct::IWatchdog::CallbackFn = std::function<void(int channelId, void* userData)>

Watchdog callback function type.

Parameters

channelId	The channel ID that timed out
userData	User data passed during configuration

Member Enumeration Documentation

Option

enum class zct::IWatchdog::Option : uint8_t

strong

Watchdog configuration options.

Enumerator
None
PauseInSleep	Pause timer during CPU sleep.
PauseHaltedByDebug	Pause timer when debugger halts CPU.

ResetFlag

enum class zct::IWatchdog::ResetFlag : uint8_t

strong

Watchdog reset behavior flags.

Enumerator
None
ResetCpuCore	Reset CPU core on timeout.
ResetSoc	Reset entire SoC on timeout.

Constructor & Destructor Documentation

IWatchdog()

zct::IWatchdog::IWatchdog

(

const char *

name

)

Constructor.

Parameters

name	Name of the watchdog instance for logging purposes

~IWatchdog()

virtual zct::IWatchdog::~IWatchdog ( )

virtualdefault

Virtual destructor.

Member Function Documentation

disable()

virtual int zct::IWatchdog::disable ( )

pure virtual

Disable the watchdog instance.

Returns

0 on success, negative error code on failure

Implemented in zct::WatchdogMock, and zct::WatchdogReal.

feed()

virtual int zct::IWatchdog::feed ( int  channelId )

pure virtual

Feed (service) a watchdog channel to prevent timeout.

Parameters

channelId

Channel ID to feed

Returns

0 on success, negative error code on failure

Implemented in zct::WatchdogMock, and zct::WatchdogReal.

getName()

const char * zct::IWatchdog::getName ( ) const

inline

Get the name of this watchdog instance.

Returns

Name string

getRawDevice()

virtual const struct device * zct::IWatchdog::getRawDevice ( ) const

pure virtual

Get the raw watchdog device pointer. Only valid on real implementations, mock implementations will return nullptr.

Returns

Raw watchdog device pointer. Returns nullptr on mock implementations.

Implemented in zct::WatchdogMock, and zct::WatchdogReal.

installTimeout()

virtual int zct::IWatchdog::installTimeout ( uint32_t  timeoutMs, CallbackFn  callback = nullptr, void *  userData = nullptr, ResetFlag  flags = ResetFlag::ResetSoc  )

pure virtual

Install a watchdog timeout configuration.

Parameters

timeoutMs	Timeout value in milliseconds
callback	Callback function to execute on timeout (optional)
userData	User data to pass to callback (optional)
flags	Reset behavior flags

Returns

Channel ID on success, negative error code on failure

Implemented in zct::WatchdogMock, and zct::WatchdogReal.

setup()

virtual int zct::IWatchdog::setup ( Option  options = Option::None )

pure virtual

Setup the watchdog with global configuration.

Parameters

options

Global watchdog options

Returns

0 on success, negative error code on failure

Implemented in zct::WatchdogMock, and zct::WatchdogReal.

Member Data Documentation

m_name

const char* zct::IWatchdog::m_name

protected

Name of this watchdog instance.

---

The documentation for this class was generated from the following files:

• /home/runner/work/ZephyrCppToolkit/ZephyrCppToolkit/include/ZephyrCppToolkit/Peripherals/IWatchdog.hpp
• /home/runner/work/ZephyrCppToolkit/ZephyrCppToolkit/src/Peripherals/IWatchdog.cpp
