zct::GpioReal Class Reference

#include <GpioReal.hpp>

Inheritance diagram for zct::GpioReal:

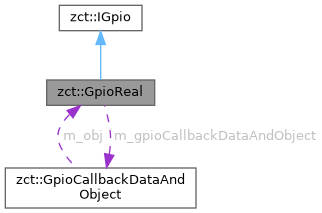

Collaboration diagram for zct::GpioReal:

Public Member Functions
	GpioReal (const char *name, const struct gpio_dt_spec *spec, Direction direction=Direction::Input, LogicMode logicMode=LogicMode::ActiveHigh)
	Create a new real GPIO pin.
	~GpioReal ()
	Destroy the GPIO. Does nothing.
void	setPhysical (bool value) override
bool	getPhysical () const override
void	configureInterrupt (InterruptMode interruptMode, std::function< void()> callback) override
Public Member Functions inherited from zct::IGpio
	IGpio (const char *name, Direction direction=Direction::Input, LogicMode logicMode=LogicMode::ActiveHigh, PullMode pullMode=PullMode::None)
	Create a new GPIO.
virtual	~IGpio ()=default
	Destroy the GPIO.
virtual void	set (bool value)
virtual bool	get () const
virtual void	setDirection (Direction direction)
virtual void	setLogicMode (LogicMode logicMode)
virtual void	setPullMode (PullMode pullMode)

Protected Member Functions
void	configurePinBasedOnSettings () override

Static Protected Member Functions
static void	interruptCallback (const struct device *dev, struct gpio_callback *cb, gpio_port_pins_t pins)

Protected Attributes
const struct gpio_dt_spec *	m_spec
GpioCallbackDataAndObject	m_gpioCallbackDataAndObject
Protected Attributes inherited from zct::IGpio
const char *	m_name
Direction	m_direction
LogicMode	m_logicMode
PullMode	m_pullMode
InterruptMode	m_interruptMode
std::function< void()>	m_interruptUserCallback

Additional Inherited Members
Public Types inherited from zct::IGpio
enum class	Direction { Input , Output }
enum class	LogicMode { ActiveHigh , ActiveLow }
enum class	PullMode { None , PullUp , PullDown }
enum class	InterruptMode {   Disable , EdgeRising , EdgeFalling , EdgeBoth ,   LevelLow , LevelHigh , LevelToInactive , LevelToActive ,   LevelInactive , LevelActive }

Detailed Description

Implements a real Zephyr GPIO pin. Implements the IGpio interface.

Create these in your real application code.

See also

GpioMock

Constructor & Destructor Documentation

GpioReal()

zct::GpioReal::GpioReal	(	const char *	name,
		const struct gpio_dt_spec *	spec,
		Direction	direction = Direction::Input,
		LogicMode	logicMode = LogicMode::ActiveHigh
	)

Create a new real GPIO pin.

Parameters

name	The name of the GPIO. Used for logging purposes.
spec	The Zephyr GPIO DT spec struct.
direction	The direction of the GPIO.
logicMode	The logic mode of the GPIO. LogicMode::ActiveHigh is the default (0V is inactive, +VCC is active).

~GpioReal()

zct::GpioReal::~GpioReal

(

)

Destroy the GPIO. Does nothing.

Member Function Documentation

configureInterrupt()

void zct::GpioReal::configureInterrupt ( InterruptMode  interruptMode, std::function< void()>  callback  )

overridevirtual

Configure an interrupt on the GPIO.

Parameters

interruptMode	The interrupt mode to set.
callback	The callback to call when the interrupt occurs. This will be called in a interrupt context.

Implements zct::IGpio.

configurePinBasedOnSettings()

void zct::GpioReal::configurePinBasedOnSettings ( )

overrideprotectedvirtual

Configure the pin based on the current settings. The real GPIO will call the Zephyr gpio_pin_configure_dt() function. The mock GPIO will do nothing.

Implements zct::IGpio.

getPhysical()

bool zct::GpioReal::getPhysical ( ) const

overridevirtual

Get the physical value of the GPIO.

This ignores the logic mode of the GPIO and returns the physical value directly.

Returns

The physical value of the GPIO.

Implements zct::IGpio.

interruptCallback()

void zct::GpioReal::interruptCallback ( const struct device *  dev, struct gpio_callback *  cb, gpio_port_pins_t  pins  )

staticprotected

Static callback handler function which has the correct signature so that it can be passed to Zephyr's gpio_init_callback() function.

This in turn calls the user provided callback function in configureInterrupt().

Parameters

dev	The device that triggered the interrupt.
cb	The callback structure.
pins	The pins that triggered the interrupt.

setPhysical()

void zct::GpioReal::setPhysical ( bool  value )

overridevirtual

Set the physical value of the GPIO.

This ignores the logic mode of the GPIO and sets the physical value directly.

Parameters

value

The physical value to set.

Implements zct::IGpio.

Member Data Documentation

m_gpioCallbackDataAndObject

GpioCallbackDataAndObject zct::GpioReal::m_gpioCallbackDataAndObject

protected

Structure for holding callback info, if used.

Needs to be a pointer to a member of the class.

m_spec

const struct gpio_dt_spec* zct::GpioReal::m_spec

protected

The Zephyr GPIO DT spec struct.

---

The documentation for this class was generated from the following files:

• /home/runner/work/ZephyrCppToolkit/ZephyrCppToolkit/include/ZephyrCppToolkit/Peripherals/GpioReal.hpp
• /home/runner/work/ZephyrCppToolkit/ZephyrCppToolkit/src/Peripherals/GpioReal.cpp
